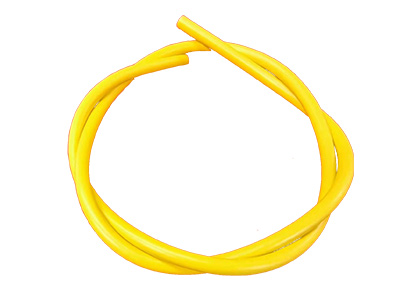

What Is PVC Insulated Hook Up Wire?

PVC insulated Hook Up Wire is a type of single-conductor electrical wire that uses PVC (Polyvinyl Chloride) as an insulation material to protect the conductive core. It is commonly used for internal wiring, electrical connections, and electronic equipment where reliable electrical insulation and mechanical protection are required.

Due to its flexibility, durability, cost-effectiveness, and good insulation performance, PVC insulated Hook up wire is widely used in industries such as electronics, appliances, automotive, industrial equipment, control systems, and electrical panels.

As an important type of hook up wire, PVC insulated wire provides a safe and efficient solution for connecting electrical components and transmitting power or signals in low-voltage applications.

What Is PVC Insulated Hook Up Wire?

PVC insulated hook up wire is an electrical wire consisting of a conductive metal core, usually copper, covered with a layer of PVC insulation.

The conductor is responsible for carrying electrical current, while the PVC insulation protects the wire from:

• Electrical leakage

• Short circuits

• Mechanical damage

• Moisture exposure

• Environmental factors

Unlike power cables designed for outdoor or heavy-duty applications, PVC hook up wire is mainly used for internal wiring connections inside electrical and electronic devices.

The basic structure of PVC insulated hook up wire includes:

• Copper conductor

• PVC insulation layer

• Optional protective coating or shielding

What Materials Are Used in PVC Insulated Hook Up Wire?

Copper Conductor

The conductor of most PVC insulated hook up wires is made from copper because copper offers:

• Excellent electrical conductivity

• Good flexibility

• High reliability

• Low electrical resistance

Depending on the application, the conductor may be:

• Solid copper wire

• Stranded copper wire

• Tinned copper wire

Stranded copper conductors provide better flexibility and are commonly used in applications requiring frequent bending.

PVC Insulation Material

PVC is one of the most widely used insulation materials in electrical wire manufacturing.

PVC insulation provides:

• Good electrical insulation

• Flame resistance

• Moisture resistance

• Abrasion resistance

• Cost efficiency

Different PVC grades can be selected depending on temperature resistance, flexibility, and environmental requirements.

Key Features of PVC Insulated Hook Up Wire

Excellent Electrical Insulation

The main function of PVC insulation is to prevent current leakage and protect electrical systems from short circuits.

This makes PVC insulated wire suitable for electronic devices, control panels, and internal electrical connections.

Good Flexibility

Flexible PVC hook up wire can easily be routed through compact spaces and complex wiring systems, making installation easier.

Flame Retardant Performance

Many PVC insulated wires are designed with flame-retardant properties to improve electrical safety.

Moisture and Chemical Resistance

PVC insulation helps protect conductors from humidity, dust, and exposure to certain chemicals.

Cost-Effective Solution

Compared with other insulation materials such as silicone or fluoropolymer, PVC provides a balance between performance and affordability.

How Does PVC Insulated Hook Up Wire Work?

The working principle of PVC hook up wire is simple:

Electrical Current Transmission

The copper conductor carries electrical current between connected components.

Insulation Protection

The PVC outer layer prevents direct contact between conductors and protects users and equipment from electrical hazards.

Internal Component Connection

Hook up wire is mainly used to connect:

• Circuit boards

• Electrical terminals

• Switches

• Sensors

• Power supplies

• Electronic components

Applications of PVC Insulated Hook Up Wire

Electronic Equipment

PVC insulated hook up wire is commonly used for internal wiring in:

• Computers

• Communication devices

• Electronic instruments

• Consumer electronics

Its compact size and flexibility make it suitable for complex electronic assemblies.

Electrical Appliances

Many household and commercial appliances use PVC hook up wire for internal connections, including:

• Kitchen appliances

• Lighting equipment

• Home electronics

• Small electrical devices

Automotive Applications

In automotive systems, PVC insulated hook up wire is used for:

• Dashboard wiring

• Sensor connections

• Control systems

• Internal electrical circuits

Industrial Control Systems

Industrial equipment often requires reliable internal wiring for:

• Control panels

• Automation systems

• Machine wiring

• Electrical cabinets

Battery and Power Connections

PVC hook up wire can also be used in low-voltage power applications where flexibility and insulation reliability are required.

PVC Insulated Hook Up Wire vs Other Insulated Wires

Different insulation materials provide different performance characteristics.

PVC insulated hook up wire is a practical choice for general electrical applications where extreme temperature resistance is not required.

Common Types of PVC Insulated Hook Up Wire

Single Core PVC Wire

Single core PVC wire is widely used for internal electrical connections and circuit wiring.

Stranded PVC Hook Up Wire

Stranded wire contains multiple small copper strands, providing improved flexibility and resistance to bending.

Tinned Copper PVC Wire

Tinned copper conductors provide improved corrosion resistance and solderability, making them suitable for electronic applications.

UL Approved PVC Hook Up Wire

UL-certified hook up wires meet specific safety standards and are commonly used in electronic and electrical equipment manufacturing.

How to Choose PVC Insulated Hook Up Wire?

Consider Voltage Requirements

Select a wire with a suitable voltage rating according to the electrical application.

Choose the Correct Wire Size

The conductor size should match the required current capacity to avoid overheating.

Check Temperature Rating

Different PVC materials have different temperature limits. Choose according to the operating environment.

Consider Flexibility Requirements

For applications involving movement or repeated bending, stranded conductors are usually preferred.

Select a Reliable PVC Hook Up Wire Manufacturer

A professional PVC insulated wire manufacturer can provide customized wire sizes, colors, certifications, and technical support.

FAQ About PVC Insulated Hook Up Wire

What is PVC insulated hook up wire used for?

PVC insulated hook up wire is used for internal electrical connections in electronic devices, appliances, automotive systems, control panels, and industrial equipment.

What is the difference between PVC wire and hook up wire?

PVC wire describes a wire using PVC insulation, while hook up wire specifically refers to wires designed for internal connections between electrical components.

Is PVC insulated hook up wire flexible?

Yes. Many PVC hook up wires use stranded copper conductors, providing good flexibility for installation and wiring applications.

What temperature can PVC insulated hook up wire withstand?

The temperature rating depends on the PVC material and wire specification. Common PVC insulated wires are designed for general low and medium temperature applications.

Why is PVC used for Wire Insulation?

PVC is widely used because it provides good electrical insulation, flame resistance, durability, moisture resistance, and cost efficiency.
