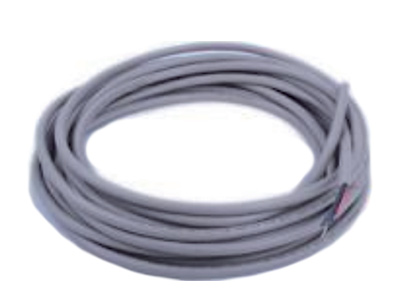

UL Shielded Parallel Cable is a multi-conductor cable designed for electrical connections where multiple conductors need to be arranged in a parallel structure while providing protection against electromagnetic interference. The shielding layer helps reduce the impact of external electrical noise and signal interference.
For electronic equipment, industrial control systems, automation equipment, and other electrical applications, Shielded Parallel Cable can provide organized conductor arrangement, reliable electrical transmission, and additional interference protection.
As a professional cable manufacturer, we provide UL parallel cable and customized shielded Cable Solutions according to conductor size, number of cores, insulation material, shielding structure, length, and application requirements.
A UL shielded parallel cable is a parallel cable manufactured with a shielding layer and designed to meet applicable UL requirements for its specified construction and application.
Unlike a standard parallel cable, a shielded parallel cable includes an additional conductive shield around the insulated conductors. The shield can help reduce electromagnetic interference (EMI) and radio frequency interference (RFI) affecting electrical signals.
The parallel conductors are arranged side by side, which can make the cable suitable for applications where space, connection structure, and organized wiring are important.
A shielded parallel cable typically consists of multiple insulated conductors arranged in parallel, together with a conductive shielding layer and an outer protective jacket when required.
The internal conductors are arranged side by side according to the cable design. Each conductor is insulated to prevent unwanted electrical contact between adjacent conductors.
The insulation layer protects each conductor and provides electrical separation. Different insulation materials can be selected according to voltage, temperature, flexibility, and application requirements.
The shielding layer surrounds the conductors and helps reduce the influence of external electromagnetic interference. Depending on the cable design, shielding may use materials such as aluminum foil, copper braid, or other conductive structures.
When required, an outer jacket provides additional mechanical and environmental protection for the cable assembly.
UL parallel cable can be designed for different electrical and equipment connection requirements.
Parallel cable construction allows multiple conductors to be integrated into one organized cable assembly, helping simplify wiring and installation.
The shielding layer of a shielded parallel cable can help reduce electromagnetic interference and improve signal transmission stability in environments with electrical noise.
Depending on the conductor and insulation materials, parallel cables can be designed for applications requiring a certain degree of flexibility.
The parallel structure keeps the conductors arranged in a consistent configuration, which can be useful for equipment wiring and compact electrical assemblies.
Cable specifications can be customized according to conductor count, conductor size, insulation, shielding, jacket material, cable length, and other requirements.
A UL shielded flat cable combines a flat or parallel cable structure with an electromagnetic shielding layer.
The flat configuration can be useful where multiple conductors need to be routed together in a limited space. Shielding can provide additional protection in applications where electrical noise or signal interference is a concern.
Depending on the design, shielded flat cable can be manufactured with different conductor arrangements, pitches, insulation materials, and shielding structures.
The main difference between a standard parallel cable and a shielded parallel cable is the presence of the shielding layer.
| Feature | Standard Parallel Cable | Shielded Parallel Cable |
|---|---|---|
| Parallel conductor arrangement | Yes | Yes |
| Multiple conductors | Yes | Yes |
| Shielding layer | No or optional | Yes |
| EMI protection | Limited | Improved interference protection |
| Organized wiring | Yes | Yes |
| Suitable for noisy environments | Application dependent | Better suited to applications requiring shielding |
| Custom construction | Available | Available |
The appropriate cable should be selected according to the electrical environment, signal requirements, installation method, and equipment design.
UL shielded parallel cable can be used in various electrical and electronic applications where parallel conductors and interference protection are required.
Typical applications include:
Electronic equipment
Industrial control systems
Automation equipment
Instrumentation
Control panels
Communication equipment
Computer and peripheral equipment
Internal equipment wiring
Consumer electronics
Electrical assemblies
The specific cable construction should be selected according to the equipment requirements and applicable standards.
Different equipment and connection systems may require different cable specifications. Custom shielded parallel cable can be manufactured according to specific electrical and mechanical requirements.
Customization options may include:
Number of conductors
Conductor size
Conductor material
Insulation material
Cable width
Conductor spacing
Shielding material
Shielding coverage
Outer jacket material
Cable length
Connector or terminal assembly
Customers can provide technical drawings, samples, electrical specifications, or application requirements for cable development.
The manufacturing process of UL shielded parallel cable depends on the cable construction and required specifications.
Conductors are prepared according to the required material, size, and electrical specifications.
Each conductor is insulated using the specified material and construction.
The insulated conductors are arranged in the required parallel configuration to create the desired cable structure.
A conductive shielding layer is applied around the conductor assembly according to the required shielding design.
When required, an outer jacket is applied to provide additional mechanical protection.
Finished cables can be inspected and tested according to applicable product specifications, including dimensional, electrical, appearance, and other required quality checks.
Choosing the appropriate UL shielded parallel cable can help meet the wiring and interference-control requirements of electrical and electronic equipment.
Key considerations include:
Stable electrical transmission
Organized conductor arrangement
Shielding against electromagnetic interference
Flexible construction options
Customized cable dimensions
OEM manufacturing support
Application-specific cable design
The final cable specification should be selected according to voltage, current, signal type, operating environment, installation method, and applicable certification requirements.
As a professional parallel cable manufacturer, we provide standard and customized cable solutions for electronic, electrical, industrial, and OEM applications.
Our capabilities can support UL shielded parallel cable, shielded flat cable, and other customized parallel cable constructions according to customer requirements.
Cable specifications can be developed based on conductor size, core number, insulation, shielding structure, jacket material, dimensions, length, and application environment.
For OEM projects, customers can provide drawings, samples, technical specifications, or application requirements for evaluation and customized cable production.
When selecting a shielded parallel cable, consider the following factors.
Consider voltage, current, conductor size, signal type, and required electrical performance before selecting the cable.
The number of parallel conductors should match the connection requirements of the equipment or electrical system.
If the cable will be used near motors, power equipment, control systems, or other potential sources of electrical interference, an appropriate shielding structure may be required.
The cable width, thickness, conductor spacing, and bending requirements should match the available installation space.
For applications requiring UL-recognized or UL-listed cable products, the specific UL requirements should be confirmed according to the cable construction and intended application.
A UL shielded parallel cable is a multi-conductor parallel cable with a shielding layer designed for applications requiring organized conductor connections and additional protection against electromagnetic interference.
Shielded parallel cable is used for electrical and electronic applications where multiple conductors are arranged in parallel and protection against electromagnetic interference is required.
A standard parallel cable may not include a shielding layer, while a shielded parallel cable incorporates a conductive shield to help reduce electromagnetic interference.
Yes. Custom shielded parallel cable can be manufactured according to conductor size, conductor count, cable dimensions, insulation, shielding, jacket material, length, and other requirements.
The terms can overlap depending on the cable construction. A shielded flat cable generally refers to a flat cable with a shielding layer, while shielded parallel cable emphasizes the parallel arrangement of its conductors.
Consider the required conductor size, number of conductors, voltage, current, signal type, cable dimensions, shielding requirements, operating environment, and applicable UL requirements.
