Low Voltage Computer Cable

Low Voltage Computer Cable is a Low Voltage Computer Cable designed for the connection of communications, instrumentation and computer equipment. It consists of tinned or bare copper conductors (can be solid or stranded), color-coded polypropylene (PP) insulation, aluminum foil shield, tinned or bare copper drain wire, tinned or bare copper braided shield (optional), and PVC outer sheath. This cable passes the UL VW-1 vertical burning test, complies with UL 758 and UL 1581 standards, and is rated for 80°C and 30V.

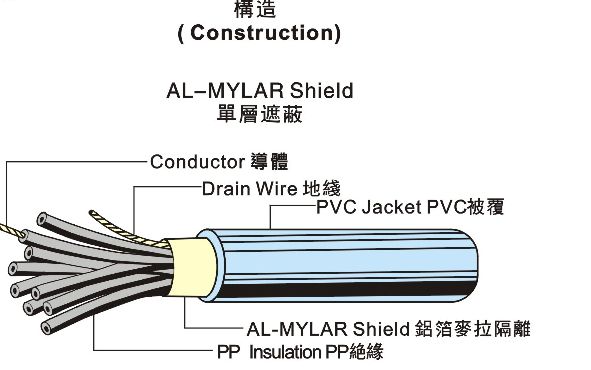

■ PRODUCT DESCRIPTION：
●Tinned or bare,solid or stranded copper conductor.
●Color-coded polypropylene(PP) insulation.
●Coress cabled under aluminum mylar shield.
●Tinned or bare copper drain wire.
●Drain wire laid between aluminum mylar and braid.
● (or laid between aluminum mylar and core groups).
●Tinned or bare copper wire braid shield.(or no braid shield).
●PVC jacket.
●Rated temperature：80℃. Rated voltage：30 volts.
●Passes UL VW-1 vertical flame test.
●Reference standard：UL subject 758, UL1581.

■ APPLICATIONS:
● Used for communication,instrumentation and computers cables.

Features

High conductivity: tinned or bare copper conductors are used to provide stable signal transmission capabilities.

Efficient shielding: equipped with aluminum foil shielding layer to effectively prevent electromagnetic interference (EMI) and radio frequency interference (RFI).

Flame retardant performance: passed UL VW-1 vertical burning test to improve safety.

Durability: PVC outer sheath provides excellent wear resistance, oil resistance and anti-aging performance.

Strong flexibility: suitable for scenarios requiring bending and flexible wiring.

Advantages

Signal stability: low voltage design reduces signal loss and ensures stable data transmission.

Safe and reliable: meets UL standards and meets international safety requirements.

Widely compatible: suitable for a variety of electronic equipment and industrial control systems.

Customization support: conductor type, shielding method, outer sheath color and length can be customized according to customer needs.

Application range

Computer system: data transmission, power connection, etc.

Communication equipment: telephone system, network equipment connection.

Industrial automation: connection of PLC, sensors, instruments and meters.

Medical equipment: laboratory equipment, monitors, imaging equipment.

Aerospace: Low voltage signal transmission and control cable.

Customized options available

Conductor material: tinned copper/bare copper, solid/stranded

Shielding method: aluminum foil + drain wire / aluminum foil + braided shield / unshielded

Insulation material: polypropylene (PP)

Sheath material: PVC

Color and length: customizable to meet customer needs

FAQ

1. Can Low Voltage Computer Cable be used outdoors?

This cable is mainly used in indoor environments. If it needs to be used outdoors, it is recommended to choose a model with additional protective coating to improve weather resistance.

2. Is this cable suitable for high-speed data transmission?

This cable is suitable for low voltage signal transmission and is suitable for general communications and computer applications. If higher speed data transmission is required, it is recommended to use specialized high-speed data cables such as Cat 6 or fiber optic cables.

3. How to choose the right shielding type?

Aluminum foil shielding is suitable for general anti-interference needs, such as computer and instrumentation connections.

Aluminum foil + braided shielding is suitable for stronger anti-electromagnetic interference needs, such as industrial automation and medical equipment.

Unshielded is suitable for environments with less interference, such as ordinary home network wiring.

4. What is the service life of this cable?

Under normal use, the life of this cable can reach 5-10 years. Regularly check whether the outer sheath of the cable is worn or aged to extend the service life.

5. Can customization that meets specific industry standards be provided?

Yes, we can customize production according to international standards such as UL, CE, RoHS, etc. to meet specific industry needs.

If you have more needs or customization requirements, please contact us for more details!
