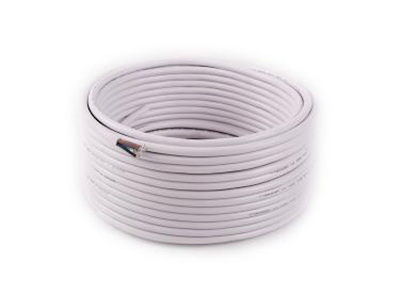

What Is a Thermoplastic Sheathed Cable?

Thermoplastic Sheathed Cable is a widely used Electrical Cable solution known for its durability, flexibility, and cost-effectiveness. As a type of thermoplastic insulated sheathed cable, it is designed with thermoplastic insulation and an outer thermoplastic sheath that provides mechanical protection and electrical safety. These cables are commonly used in residential, commercial, and industrial electrical systems.

As demand for reliable and efficient wiring continues to grow, thermoplastic cables play an increasingly important role in modern power distribution and equipment connections.

What Is a Thermoplastic Sheathed Cable?

A thermoplastic sheathed cable is an electrical cable that uses thermoplastic materials for both insulation and outer sheathing. The thermoplastic sheath protects the internal conductors from moisture, abrasion, and environmental damage, while the insulation ensures safe current transmission.

This type of thermoplastic insulated cable is easy to process, cost-efficient, and suitable for mass production, making it one of the most common cable structures in the market.

Structure of Thermoplastic Insulated Sheathed Cables

Typical thermoplastic insulated sheathed cables consist of:

• Conductor: Copper or aluminum conductor

• Insulation: Thermoplastic insulation such as PVC or other polymer materials

• Sheath: Thermoplastic sheath providing mechanical and environmental protection

Thanks to this structure, thermoplastic wire and cable products offer good electrical performance and long service life.

Types of Thermoplastic Sheathed Cables

Thermoplastic Sheathed Circular Cable

A thermoplastic sheathed circular cable features a round cross-section and is commonly used in industrial equipment and flexible installations. The thermoplastic sheathed circular design allows even stress distribution and easy routing through conduits and cable trays.

Typical advantages include:

• Better mechanical balance

• Higher flexibility

• Suitable for dynamic applications

Thermoplastic Sheathed Flat Cable

A thermoplastic sheathed flat cable has a flat structure that is ideal for surface mounting and limited installation spaces. Thermoplastic sheathed flat cables are often used in residential wiring, control panels, and appliances.

Key benefits:

• Space-saving design

• Easy installation

• Clean and organized wiring layout

Thermoplastic Cable Materials and Properties

Thermoplastic cables use materials that soften when heated and harden when cooled, allowing easy processing and recycling. Common properties include:

• Good electrical insulation

• High resistance to moisture and chemicals

• Excellent flexibility

• Cost-effective manufacturing

Because of these advantages, thermoplastic insulated sheathed cables are widely adopted across multiple industries.

Applications of Thermoplastic Sheathed Cables

Thermoplastic sheathed cable products are suitable for a wide range of applications, including:

• Building and residential Electrical Wiring

• Commercial power distribution systems

• Industrial machinery and equipment

• Control panels and automation systems

• Appliance internal wiring

In these applications, thermoplastic wire provides reliable electrical performance and long-term safety.

Thermoplastic Sheathed Cable Market Overview

The thermoplastic sheathed cable market continues to grow due to increasing demand for infrastructure development, industrial automation, and energy-efficient electrical systems. Compared with thermoset cables, thermoplastic-sheathed Cable Solutions offer lower production costs, easier installation, and greater design flexibility.

Manufacturers are also developing advanced thermoplastic insulated cable materials to improve heat resistance, flame retardancy, and environmental compliance.

Advantages of Thermoplastic Sheathed Cables

• Cost-effective and widely available

• Easy to install and process

• Good flexibility and mechanical protection

• Suitable for both circular and flat cable designs

• Compatible with mass production requirements

These advantages make thermoplastic cables a preferred choice for many electrical and electronic applications.

Thermoplastic sheathed cable is an essential component of modern electrical systems. Whether in the form of thermoplastic sheathed circular cable or thermoplastic sheathed flat cable, these products offer reliable insulation, strong mechanical protection, and cost efficiency. As the thermoplastic sheathed cable market continues to expand, thermoplastic cable solutions will remain a key option for safe and efficient power and signal transmission.
