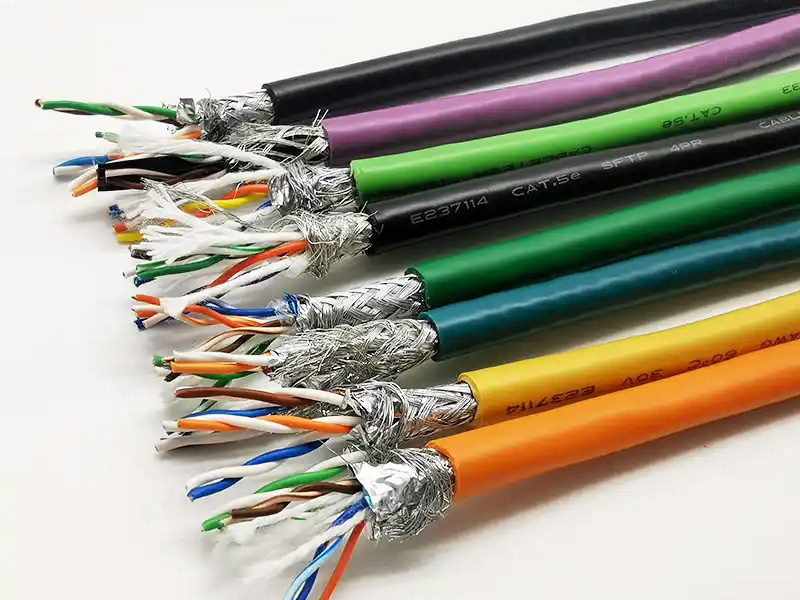

Network Cables are the core medium for wired connections between computers and network devices (routers, modems, switches). Their key value lies in providing more stable and faster network transmission than Wi-Fi, adapting to various scenarios such as high-speed downloads, online gaming, office networking, and data center interconnection. Based on different transmission media and application scenarios, network cables are mainly divided into two categories: Ethernet Cables (Twisted Pair) and Fiber Optic Cables. The two differ significantly in technical principles, performance parameters, and application scenarios, which are detailed below:
Ethernet cables are currently the most widely used network cables, named "twisted pair" due to their internal structure of 4 pairs of twisted copper wires. Their core structure includes "copper conductors, insulation layers, twisted structure, shielding layer (for some models), sheath, and RJ45 connectors." The design core is to reduce signal interference (crosstalk) between adjacent wires through the "twisted structure," and then cooperate with different levels of shielding design to meet various needs from daily home use to high-speed enterprise networking. They are classified into multiple "Categories" according to performance levels; the higher the number, the stronger the transmission rate, bandwidth, and anti-interference ability.
Cat5 is an early twisted pair standard developed in the 1990s, with core parameters of "100 Mbps transmission rate, 100 MHz bandwidth." Internally, it adopts 4 pairs of unshielded twisted copper wires with low twist density and weak anti-interference ability, only meeting basic needs such as early dial-up internet access and simple office file transmission. It has been completely obsolete today and can only be occasionally found in old office buildings and industrial legacy wiring. It cannot adapt to current broadband of 100 Mbps and above, so it is not recommended to purchase or use it.
Cat5e, short for "Enhanced Category 5," is an optimized upgrade of Cat5 and currently the most cost-effective choice, dominating the mainstream market of home and small-to-medium office networking. Its core parameters are "1 Gbps transmission rate, 100 MHz bandwidth." It adopts a tighter twisted structure and high-quality copper cores, with an unshielded design (UTP) that makes it flexible and affordable, with a maximum transmission distance of 100 meters (meeting the wiring needs of most homes and offices).
Application scenarios: 100M/1000M broadband access, online gaming, 4K video streaming, printer sharing, home NAS storage access, and other daily scenarios. Its performance can fully cover the network needs of ordinary users, and it has strong compatibility, being backward compatible with old devices. It is the preferred choice for "sufficient and not wasteful."
Cat6 is designed for high-bandwidth scenarios, with core parameters of "10 Gbps transmission rate, 250 MHz bandwidth." Compared with Cat5e, it has two major upgrades: first, higher twist density and thicker copper wire diameter (usually 23AWG), reducing crosstalk and signal attenuation; second, some models adopt shielding design (STP/FTP), wrapping the cable with aluminum foil or metal mesh to further improve anti-interference ability (suitable for environments with strong interference such as near power lines and motors).
In terms of transmission distance, Cat6 supports a maximum of 55 meters at 10 Gbps and can extend to 100 meters at 1 Gbps, balancing high speed and distance requirements. Application scenarios: home servers, 4K/8K video transmission, enterprise office networking, e-sports studios (requiring low-latency networks), and other scenarios with high bandwidth requirements. Its price is 20%-30% higher than Cat5e, but it can reserve room for future upgrades (such as subsequent broadband upgrades to 10 Gbps).
Cat6a, short for "Augmented Category 6," is an enhanced version of Cat6, with core parameters of "10 Gbps transmission rate, 500 MHz bandwidth." The key upgrade lies in the shielding design (mostly S/FTP double shielding: each pair of wires with independent aluminum foil shielding + overall metal mesh shielding), which greatly improves anti-interference ability, and the transmission distance can reach 100 meters at 10 Gbps (solving the problem of short 10Gbps transmission distance of Cat6).
Application scenarios: data centers, professional studios, large enterprise office areas, long-distance wiring in villas/large apartments (such as crossing floors or rooms over 55 meters). Its price is 30%-50% higher than Cat6, but it has better stability and durability, suitable for scenarios with extremely high network quality requirements and long-term use.
Both Cat7 and Cat8 are industrial-grade high-standard cables, with core positioning of "ultra-high-speed short-distance transmission." Cat7 has parameters of "10 Gbps transmission rate (some support 40 Gbps), 600 MHz bandwidth," adopting S/FTP double shielding, with a transmission distance of about 15 meters at 40 Gbps; Cat8 is currently the highest-grade twisted pair, with core parameters of "40 Gbps transmission rate, 2000 MHz bandwidth," featuring double shielding + thickened copper cores, with a transmission distance of up to 30 meters at 40 Gbps.
Both have the characteristics of extremely strong anti-interference ability (resisting industrial electromagnetic interference) and extremely high transmission rate, but the cables are thick and stiff, difficult to wire, and expensive (the price of Cat8 is 5-10 times that of Cat5e). Application scenarios: data center server cluster interconnection, industrial control networks, core computer rooms of large enterprises. It is completely unnecessary for home use (broadband speed is usually ≤10 Gbps, and wiring space is limited).
UTP (Unshielded Twisted Pair): No additional shielding layer, relying only on the twisted structure for anti-interference. It is low-cost, flexible, and easy to wire, suitable for environments with little interference such as homes and offices, such as Cat5e and some Cat6.
FTP (Foil Twisted Pair): The entire cable is wrapped with a layer of aluminum foil, with better anti-interference ability than UTP. It is suitable for wiring near power lines, air conditioners, and other equipment, with moderate cost.
STP (Shielded Twisted Pair): The entire cable is wrapped with metal mesh, with stronger shielding effect. It is suitable for industrial environments but has poor flexibility and high price.
S/FTP (Screened/Foil Twisted Pair): Double shielding with independent aluminum foil shielding for each pair of wires + overall metal mesh shielding, with the strongest anti-interference ability. It is used for Cat6a, Cat7, and Cat8, adapting to high-interference and high-bandwidth scenarios.
All Ethernet cables are equipped with RJ45 crystal heads (8-pin interfaces), which are universal interfaces for connecting computers, routers, and switches. Attention should be paid to the "wiring sequence" during wiring, with two common standards:
T568B: The mainstream choice for home and office wiring, with the wiring sequence of "Orange-White, Orange, Green-White, Blue, Blue-White, Green, Brown-White, Brown," featuring the strongest compatibility.
T568A: The wiring sequence is "Green-White, Green, Orange-White, Blue, Blue-White, Orange, Brown-White, Brown," mostly used for cross-device interconnection (such as direct computer-to-computer connection) or cooperating with T568B to achieve "crossover cable" function.
Incorrect wiring sequence will lead to network disconnection, reduced speed (such as 1000Mbps down to 100Mbps), and even packet loss and high latency. Strictly follow the standard when making cables yourself.
The theoretical maximum transmission distance of Ethernet cables is 100 meters (for Cat5e/Cat6/Cat6a). Beyond this distance, the signal will experience significant attenuation, manifested as reduced speed (such as 1000Mbps down to 100Mbps), packet loss, increased latency, and even disconnection. For long-distance transmission (such as crossing floors in villas or rooms in office buildings over 100 meters), a switch or repeater needs to be installed in the middle to amplify the signal, or fiber optic cables can be directly selected.
Choose the category on demand: Cat5e is sufficient for ordinary homes; Cat6 is suitable for 10Gbps bandwidth and high-interference environments; Cat6a is for long-distance 10Gbps transmission; Cat7/Cat8 is for industrial/data center scenarios.
Prioritize compliant products: Inferior cables may have problems such as "falsely marked categories" (e.g., Cat6 actually being Cat5e), impure copper cores, and shoddy shielding layers. Choose brands with 3C, UL, and CE certifications (such as AMP, Akiba, Ugreen) to avoid speed loss and safety hazards.
Control cable length: Try not to exceed 100 meters. Choose 1-2 meters for desktop connection and 5-10 meters for room wiring. Overly long cables not only affect speed but also increase interference risks.
Avoid high-interference environments: Keep cables away from power lines, air conditioners, motors, and other equipment. Avoid parallel wiring (the distance is recommended to be ≥30cm) to reduce the impact of electromagnetic interference on signals.
The key difference between fiber optic cables and twisted pairs lies in the "transmission medium"—using "optical signals" instead of "electrical signals" to transmit data through glass or plastic cores. Their core advantages are "extremely high speed, extremely strong anti-interference ability, and extremely long transmission distance," but they have high cost and difficult wiring. They are mainly used for backbone networks, data centers, and ISPs (Internet Service Providers), and rarely used in home scenarios.
Single-Mode Fiber (SMF): The core diameter is extremely thin (about 9μm), allowing only one mode of optical signal transmission with extremely low signal attenuation. Core parameters: 10 Gbps-100 Gbps transmission rate, transmission distance up to 10km-100km (or even farther with optical amplifiers). Application scenarios: inter-city ISP backbone networks, long-distance communication, and interconnection of large data centers (cross-city).
Multi-Mode Fiber (MMF): The core diameter is thicker (50μm or 62.5μm), allowing multiple modes of optical signal transmission with higher signal attenuation than single-mode fiber. Core parameters: 1 Gbps-10 Gbps transmission rate, transmission distance of 500m-2km. Application scenarios: interconnection of server clusters in data centers and enterprise campus networking (cross-building).
The interfaces of fiber optic cables are different from the RJ45 of twisted pairs, requiring special interfaces and optical modules (converting electrical signals to optical signals). Common interface types:
SC Interface: Square plug-in interface with good sealing and easy plugging, commonly used in telecommunications equipment and data centers.
LC Interface: Small square interface with small size and high density, suitable for data centers (saving cabinet space).
ST Interface: Round screw-on interface, an old interface with strong sealing but inconvenient plugging, gradually being replaced by SC/LC.
FC Interface: Threaded interface with extremely strong stability and anti-vibration, used in industrial control, long-distance communication, and other scenarios requiring high connection stability.
Extremely high speed ceiling: The current mainstream speed is 10 Gbps-100 Gbps, and it can be upgraded to 1 Tbps in the future (100 times that of 10Gbps Ethernet), fully meeting future network bandwidth needs.
Extremely strong anti-interference ability: Optical signals are not affected by electromagnetic interference (such as power supplies, motors, radio waves) and electromagnetic radiation, making them suitable for confidential scenarios (signals are not easy to be intercepted) and high-interference industrial environments.
Long transmission distance: Single-mode fiber can transmit dozens of kilometers without repeaters, far exceeding the 100-meter limit of twisted pairs, eliminating the need for frequent installation of amplification equipment.
No bandwidth bottlenecks: The bandwidth resources of fiber optics are almost unlimited, enabling simultaneous transmission of large amounts of data and audio-visual signals, suitable for multi-user and high-concurrency scenarios (such as data centers).
High cost: The price of fiber optic cables themselves is several times that of twisted pairs, and they need to be matched with optical modules and fiber optic transceivers (converting optical signals to electrical signals recognizable by computers). The overall equipment cost is more than 10 times that of Ethernet.
Difficult wiring: Fiber cores are fragile (easy to break), requiring special tools (such as fiber fusion splicers) and professional technicians for wiring. The bending radius cannot be too small (usually ≥30mm), otherwise signal attenuation will occur.
Poor compatibility: Computers and ordinary routers do not have fiber optic interfaces, requiring a transfer process of "fiber optic → fiber optic transceiver → RJ45 interface → device," which is complex to operate and not suitable for home users.
Application scenarios: ISP backbone networks (inter-city and inter-country data transmission), interconnection of server clusters in data centers, enterprise campus networking (cross-building over 2km), and industrial control networks (high-interference environments).
Suggestions for home use: Fiber optic wiring can be considered only when the home broadband is 10Gbps and the wiring distance exceeds 100 meters, but additional purchases of optical modems and fiber optic transceivers are required, with high cost. Most families do not need such configurations.
Maintenance points: Avoid bending, squeezing, and pulling fiber optic cables. Keep the connector clean (dust will affect optical signal transmission). For extension or repair, professional personnel need to use fusion splicers for processing.
The core of choosing network cables is to "match scenarios and bandwidth needs": For homes and small-to-medium offices, prioritize Cat5e (cost-effective) or Cat6 (high-speed reserve) Ethernet cables, balancing stability and cost; for enterprises and professional studios requiring 10Gbps or long-distance transmission, choose Cat6a or fiber optic cables; for industrial and data center scenarios, Cat7/Cat8 or single-mode fiber optic cables are needed. Regardless of the type of cable chosen, attention should be paid to product compliance, transmission distance, and anti-interference design to ensure stable and efficient network transmission.
