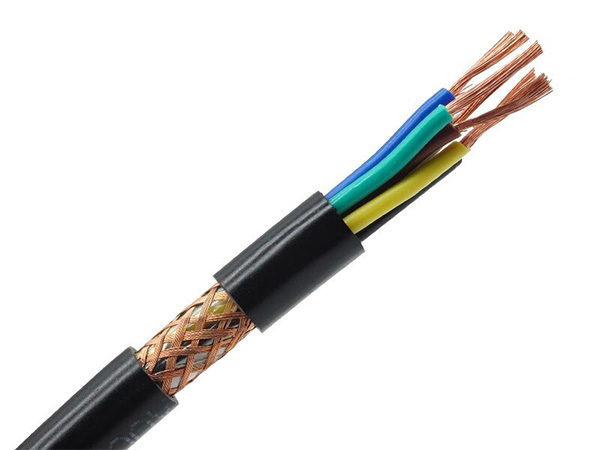

What Is A Shielded Signal Cable?

A Shielded Signal Cable is a specialized transmission cable integrated with an additional shielding layer, specifically engineered to mitigate electromagnetic interference (EMI) and radio frequency interference (RFI). It safeguards the integrity of weak or high-frequency signals during transmission, making it an irreplaceable component in complex electronic environments where signal stability is non-negotiable.

Full Structure Breakdown

Each layer of the shielded signal cable serves a distinct and critical purpose, working in tandem to balance efficient signal transmission and robust interference protection. At the core lies the central conductor, typically crafted from oxygen-free copper (OFC) or tinned copper. Oxygen-free copper boasts high conductivity, minimizing signal loss during transmission, while tinned copper enhances corrosion resistance—both materials ensure the reliable carriage of analog, digital, or low-voltage power signals.

Wrapping directly around the central conductor is the insulation layer, made from materials such as polyethylene (PE), polyvinyl chloride (PVC), or fluorinated ethylene propylene (FEP). This layer isolates the conductor from the subsequent shielding layer to prevent short circuits and reduces internal signal leakage, laying the groundwork for stable signal flow.

The defining feature of this cable type is the shielding layer, which surrounds the insulation layer. Common designs include braided shields, woven from thin copper wires with a coverage rate of 85%-95%—these are flexible and durable, ideal for environments requiring frequent bending, such as industrial settings. Foil shields, made of thin aluminum foil, offer nearly 100% coverage, are lightweight, and cost-effective, suiting high-frequency signal transmission but lacking flexibility. Dual shields combine a foil layer with a braided layer, merging the advantages of both to deliver maximum interference protection, often used in high-noise environments like data centers.

An optional drain wire—a thin copper wire attached to the shielding layer—facilitates grounding (a critical step for effective shielding) and simplifies the termination process. Finally, the outer sheath, crafted from PVC, polyurethane (PU), or nylon, acts as the outermost protective barrier. It shields the internal structure from physical damage, moisture, oil, or chemical corrosion, with material choices adapted to specific environments: PU for industrial machinery and PVC for indoor use.

Working Principle of Shielding

The shielding layer functions as a "protective barrier" against interference, operating through two core mechanisms. For electromagnetic shielding, the metal shielding layer forms a closed conductive loop. When external electromagnetic waves—emitted by power cables, motors, or wireless devices—encounter the shield, they induce an electric current on its surface. This current is then discharged to the ground via the drain wire, preventing the waves from penetrating the central conductor and disrupting the signal.

For radio frequency shielding, the layer reflects or absorbs radio frequency interference, crucial for high-frequency signals like RF or Ethernet transmissions. Additionally, it suppresses "signal radiation" from the central conductor itself, avoiding interference with nearby sensitive electronics such as audio equipment or medical devices. A key note: effective shielding hinges on proper grounding. Without it, the shielding layer may inadvertently act as an "antenna," amplifying interference instead of blocking it.

Types of Shielded Signal Cables (By Shielding Structure)

Different shielding designs are tailored to specific usage scenarios, each with unique strengths and limitations. Foil-shielded cables (F/UTP) consist of a foil layer, central conductor, insulation, and outer sheath. They offer low cost, 100% coverage, and lightweight construction but suffer from poor flexibility and are prone to tearing—making them suitable for indoor audio/video cables and low-bending data cables.

Braided-shielded cables (B/UTP) feature braided copper wires surrounding the central conductor, insulation, and outer sheath. They excel in flexibility and durability, performing well in dynamic environments, but have a coverage rate of 85%-90% and are bulkier. These are commonly used for industrial control cables, automotive wiring, and portable devices.

Dual-shielded cables (F/B/UTP) combine a foil layer with a braided layer, along with the central conductor, insulation, and outer sheath. They deliver maximum interference protection and 100% coverage but come with higher costs and increased weight. Their applications include data centers (for Cat6A/Cat7 Ethernet), medical equipment, and aerospace electronics.

Spiral-shielded cables, with spiral-wound copper tape or wire, balance flexibility and coverage but are less common, limited to specific high-frequency signals like those used in RF communication cables and satellite receivers.

Key Performance Indicators

To evaluate the quality of a shielded signal cable, several critical metrics must be considered. Shield coverage rate refers to the percentage of the insulation layer covered by the shielding material—foil shields reach approximately 100%, while braided shields range from 85%-95%—with higher coverage translating to better interference resistance.

Attenuation, or signal loss during transmission, is influenced by conductor material, insulation quality, and frequency. Oxygen-free copper conductors and low-loss insulation (such as FEP) help minimize this loss. Characteristic impedance is vital for digital signals like Ethernet or USB, typically standardized at 50Ω for RF cables or 100Ω for data cables—mismatched impedance causes signal reflection and distortion.

EMI/RFI rejection, measured in decibels (dB), indicates the cable’s ability to block interference, with higher dB values signifying stronger rejection (industrial cables often require ≥80dB). The operating temperature range—for example, -40°C to 105°C for industrial-grade cables—determines the cable’s suitability for extreme environments.

Typical Application Scenarios

Shielded signal cables are employed wherever signal stability is critical, especially in high-interference environments. In industrial automation, they power sensors, PLCs (Programmable Logic Controllers), and motor control systems—factories’ heavy machinery and power cables generate strong EMI, making braided or dual-shielded cables the preferred choice.

In audio/video systems, professional microphones, studio equipment, and HDMI cables rely on foil-shielded cables to prevent "hissing" or "snow" caused by RFI, ensuring clear sound and image quality. For data communication, high-speed Ethernet (Cat6A, Cat7), USB 3.0/4, and fiber optic patch cords use dual-shielded cables to support 10Gbps+ transmission without interference.

Medical devices such as ECG machines, ultrasound equipment, and MRI scanners depend on weak biological signals, so shielded cables with high EMI rejection are mandatory. In automotive electronics, in-car infotainment systems, sensors, and EV power control units use braided-shielded cables that withstand vibration and temperature fluctuations. Aerospace and defense applications, including avionics systems and radar equipment, utilize dual-shielded cables to resist extreme EMI from radar and communication devices.

Installation & Usage Tips

To maximize the shielding effect, follow these best practices. First, ensure reliable grounding: connect the drain wire and shielding layer to a clean ground with a ground resistance of ≤4Ω, as poor grounding renders the shield ineffective. Second, avoid damaging the shield during stripping or termination—never cut or tear the shielding layer, especially fragile foil shields.

Third, separate shielded signal cables from power cables: maintain a distance of at least 30cm or cross them at a 90° angle to reduce interference. Finally, choose the right shield type for the environment: foil shields suffice for static settings like walls, while braided shields are better suited for moving parts such as robot arms.
