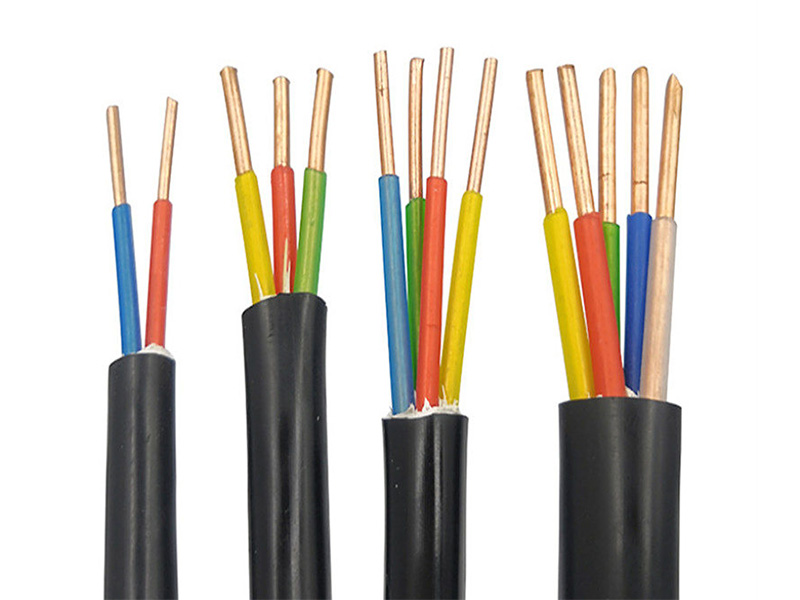

In an increasingly electrified world, the safety of electrical installations has become paramount. Flame retardant cables represent one of the most crucial advancements in electrical safety technology, designed specifically to prevent the spread of fire along cable runs and limit fire damage. These specialized cables are engineered with materials that resist ignition and inhibit flame propagation, providing critical extra minutes for evacuation and firefighting efforts. The fundamental importance of flame retardant cables lies in their ability to contain electrical fires at their source, preventing what might otherwise become catastrophic conflagrations.
Flame retardant cables are specifically formulated to limit the spread of fire along their length. When tested according to IEEE 383 standards, high-quality flame retardant cables demonstrate exceptional performance, with flame spread typically limited to less than 1.5 meters from the ignition source, compared to conventional cables that may allow flames to travel the entire cable length. This containment capability is achieved through halogen-free compounds that create protective char layers when exposed to heat, effectively insulating unburned cable sections and preventing further combustion.
Advanced flame retardant cables significantly reduce both heat release rates and smoke production during combustion. Testing according to IEC 60332-3 reveals that premium flame retardant cables can achieve heat release rates below 65 kW/m² and total smoke production of less than 150 m² over a 20-minute test period. This represents an 80% reduction in smoke density compared to standard PVC cables, dramatically improving visibility for evacuation and reducing inhalation hazards. The smoke opacity typically measures below 15% according to ASTM E662 testing protocols.
Modern flame retardant cables predominantly utilize halogen-free materials that eliminate the production of toxic and corrosive gases when exposed to fire. When subjected to temperatures exceeding 800°C, these cables maintain pH levels above 4.3 and conductivity below 10 μS/mm in water extraction tests per EN 50267-2-3 standards. This contrasts sharply with conventional halogenated cables, which can produce hydrogen chloride gas concentrations exceeding 150 mg/g of material, creating lethal environments and causing extensive secondary damage to electronic equipment.
The Limiting Oxygen Index (LOI) serves as a critical measure of flame retardancy, indicating the minimum oxygen concentration required to support combustion. High-performance flame retardant compounds typically achieve LOI values between 32-38% according to ASTM D2863 testing, significantly exceeding the 21% oxygen concentration found in normal atmosphere. This means flame retardant cables will self-extinguish in ordinary air environments, while conventional polyethylene cables with LOI values around 18% will continue to burn vigorously once ignited.
Flame retardant cables are engineered to maintain operational integrity for extended periods during fire emergencies. When tested according to BS 6387 Category C, premium flame retardant cables can withstand fire temperatures of 950°C for 180 minutes while continuing to function, ensuring that critical emergency systems remain operational. The insulation resistance typically remains above 100 MΩ·km even after direct flame exposure, and the cables can maintain voltage ratings up to 600/1000V throughout the fire resistance period.
In tall structures where vertical cable shafts can act as chimneys during fires, flame retardant cables are mandated by building codes such as NFPA 70 (NEC) and IBC. These installations require cables that meet strict flame spread criteria, typically necessitating cables rated for plenum spaces with flame spread indices below 25 and smoke developed indices below 50 according to UL 723 (ASTM E84) testing. The vertical tray flame test (IEEE 1202) requires that flames not spread beyond 2.5 meters from the ignition source.
Subways, railways, and airports extensively utilize flame retardant cables to protect passengers in confined underground spaces and transportation vehicles. These applications typically require compliance with EN 45545-2 standards, which mandate that cables achieve Hazard Level (HL) 2 or 3 classification, with maximum peak heat release rates of 100 kW and total heat release not exceeding 7.5 MJ during the first 5 minutes of combustion. Smoke density must remain below 90% opacity at the 4-minute mark according to EN 50305 test methods.
Chemical processing plants, refineries, and manufacturing facilities employ flame retardant cables in areas with high fire risks. These installations typically require cables meeting IEC 60331-11 standards for fire resistance, capable of withstanding temperatures up to 750°C to 950°C for durations from 90 to 180 minutes. The cables must maintain circuit integrity while exposed to mechanical shock and water spray simulation, with impact resistance tested at 2,000 Newtons according to IEC 60331-25 specifications.
Critical infrastructure facilities employ flame retardant cables to protect sensitive electronic equipment and ensure business continuity. These applications typically require cables with low corrosive gas emission, achieving acidity levels (pH) above 4.0 and conductivity below 10 μS/mm according to EN 50267-2-1. The cables must meet stringent smoke density requirements, with maximum specific optical density (Ds) values not exceeding 300 under flaming conditions and 150 under smoldering conditions per NES 713 testing.
Medical facilities utilize flame retardant cables in life safety systems, emergency power circuits, and critical care areas. These installations require compliance with NFPA 99 and NFPA 70 regulations, mandating circuit integrity for a minimum of 1.5 hours during fire conditions. The cables must maintain functionality while subjected to temperatures up to 840°C and water pressure of 30 psi according to UL 2196 testing standards for fire-resistive cables.
Implement a comprehensive inspection schedule examining cables for physical damage, discoloration, or deformation. Use thermal imaging cameras to identify hotspots exceeding 15°C above ambient temperature, which may indicate impending failure. Document insulation resistance measurements regularly, with values typically expected to remain above 100 MΩ for cables rated up to 1kV according to IEEE 400 guidelines. Check for proper cable support spacing, ensuring supports are installed at intervals not exceeding 1.5 meters for horizontal runs and 2 meters for vertical installations.
Protect flame retardant cables from direct UV exposure, chemicals, and mechanical abrasion that can compromise their fire-resistant properties. Maintain ambient temperatures within the cable's rated operating range, typically -20°C to +90°C for standard installations. Ensure proper sealing of cable penetrations using fire-stop systems rated for the specific fire resistance duration, typically 2-3 hours for structural fire barriers. Verify that bend radii during installation and maintenance never exceed the manufacturer's specifications, usually 8 times the overall cable diameter for multi-conductor cables.
Conduct periodic insulation resistance tests using megohmmeters applying DC voltages of 500V for 300/500V rated cables and 1000V for 600/1000V systems. Perform dielectric strength tests at 2.5 times the rated voltage plus 2000V for one minute according to IEC 60502 standards. Document conductor resistance measurements, with values typically not exceeding 7.41 Ω/km for 2.5mm² copper conductors at 20°C. Schedule comprehensive testing every 3-5 years for normal environments and annually for harsh operating conditions.
Use only approved cleaning solutions with pH values between 6.0 and 8.0 to prevent degradation of flame retardant compounds. Avoid abrasive cleaning methods that might remove the protective surface layer of the cable jacket. For cable trays and conduits, ensure proper drainage to prevent water accumulation, with maximum allowable water depth not exceeding 5 mm according to NEMA VE 1 standards. Implement corrosion prevention measures in industrial environments, particularly for metallic components, using protective coatings rated for temperatures up to 150°C.
Maintain detailed records of all flame retardant cable installations, including manufacturer certifications verifying compliance with relevant standards such as UL 1685 (Vertical-Tray Fire-Propagation and Smoke-Release Test). Document third-party test reports confirming flame spread performance, typically requiring flame travel distance not exceeding 1.5 meters and average heat release rate below 75 kW during the first 10 minutes of testing. Keep certificates verifying halogen-free composition, with chlorine content typically limited to ≤ 0.2% and bromine content to ≤ 0.2% according to IEC 60754-1 standards.
