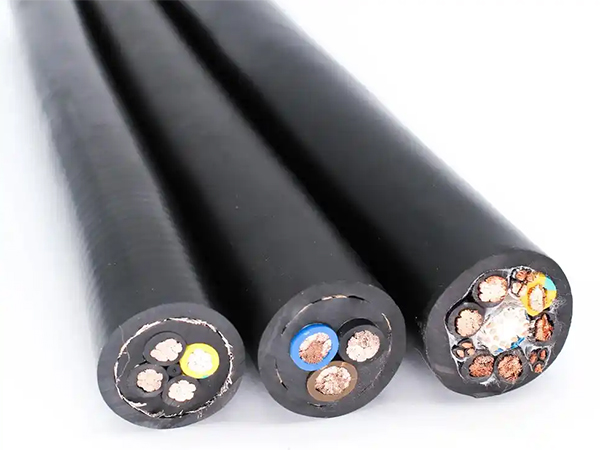

High power cables are specialized Electrical Cables designed to transmit substantial electrical energy with minimal losses, typically operating at voltages exceeding 35 kV and currents up to several kiloamperes. These cables are engineered with precision to handle extreme electrical, thermal, and mechanical stresses while ensuring reliability and safety in critical applications. The construction of high power cables involves multiple layers, including conductive cores (often copper or aluminum with cross-sections up to 2500 mm²), insulation materials such as cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR) with dielectric strengths exceeding 20 kV/mm, shielding to control electric fields, and robust outer sheathing for environmental protection. Their design prioritizes low impedance (e.g., resistance below 0.1 Ω/km for large conductors) and high current-carrying capacity, often rated for continuous operation at temperatures up to 90°C for XLPE and 105°C for EPR, with short-circuit withstand capabilities reaching 250°C for limited durations. Key characteristics include exceptional dielectric properties to prevent breakdown under high electric fields (e.g., partial discharge levels below 5 pC at rated voltage), low capacitance (typically 0.1-0.3 μF/km) to reduce charging currents, and optimized thermal dissipation to manage Joule heating effects. These cables are indispensable in infrastructure where efficient, high-capacity power transmission is required over long distances or in demanding environments.
Voltage Rating: High power cables are classified based on voltage levels, including Medium Voltage (MV: 1 kV to 35 kV), High Voltage (HV: 35 kV to 230 kV), and Extra High Voltage (EHV: above 230 kV). For instance, EHV cables can operate at 500 kV with insulation thicknesses of 25-30 mm of XLPE, designed to withstand impulse voltages of over 1500 kV.
Current Carrying Capacity: The ampacity of these cables depends on conductor size and cooling conditions. A typical 400 mm² copper conductor XLPE cable can carry approximately 600 A in air at 30°C ambient, while forced cooling systems (e.g., fluid-filled or pipe-type cables) can increase this to over 1000 A. Current densities range from 1.5 to 2.5 A/mm² for continuous operation.
Insulation Properties: XLPE insulation offers a dielectric strength of 20-25 kV/mm and a dissipation factor (tan δ) below 0.001 at operating temperature, minimizing dielectric losses. Water treeing resistance is enhanced with special compounds, extending service life beyond 40 years.
Thermal Performance: Cables are rated for continuous conductor temperatures of 90°C (XLPE) and 105°C (EPR), with short-circuit ratings allowing temperatures up to 250°C for 1 second. Thermal resistivity of insulation is typically 3.5-5.0 K·m/W, and overall heat transfer coefficients are optimized for burial or aerial installation.
Mechanical Strength: Tensile strength of conductors exceeds 200 MPa for copper and 100 MPa for aluminum. Armored variants use steel wire with tensile strengths of 500-1000 MPa, providing crush resistance over 10 kN/100mm and impact protection.
High power cables are deployed in scenarios requiring robust and efficient power transmission:
| Application | Description | Technical Specifications |
|---|---|---|
| Power Grids | Used for transmitting electricity from generation plants to substations and between grids. Underground and submarine cables replace overhead lines in densely populated or environmentally sensitive areas. | Voltages up to 500 kV AC or ±600 kV DC, with conductor sizes up to 2500 mm². Submarine cables incorporate double armor and lead sheathing for waterproofing, with lengths exceeding 100 km. |
| Industrial Complexes | Supply power to large industrial facilities such as steel mills, chemical plants, and data centers, where high reliability and fault tolerance are critical. | Medium voltage cables (e.g., 33 kV) with EPR insulation for flexibility and fire resistance (meeting IEC 60332-3 for flame spread). Current ratings tailored to loads of 10-100 MW. |
| Renewable Energy | Connect offshore wind farms or solar parks to the grid. These cables must withstand dynamic marine conditions or UV exposure. | Offshore: 36-245 kV cables with dynamic rating for tidal movements, corrosion-resistant sheathing. Onshore: XLPE cables with anti-rodent protection and thermal stability for desert environments. |
| Transportation Infrastructure | Power electrified railways, tram systems, and airport runways. Cables are designed for frequent load variations and mechanical stress. | Single-core cables with high short-circuit withstand (e.g., 40 kA for 1s), low inductance (<0.5 mH/km) to minimize voltage drop, and halogen-free materials for safety in tunnels. |
Proper maintenance of high power cables is essential to ensure longevity and prevent failures. Maintenance routines include:
1. Regular Inspections: Visual checks for external damage, corrosion, or overheating signs (discoloration). Use infrared thermography to detect hot spots; temperature deviations exceeding 10°C above ambient require investigation. For buried cables, inspect trench conditions and markers.
2. Dielectric Testing: Perform periodic withstand tests, such as DC hipot tests at 80% of factory test voltage (e.g., 150 kV for a 35 kV cable) or very low frequency (VLF) testing at 0.1 Hz to assess insulation integrity without causing degradation. Measure partial discharge levels; values above 10 pC indicate potential insulation defects.
3. Connection and Termination Checks: Inspect terminations and joints for tightness, contamination, or tracking. Use torque wrenches on bolts to specified values (e.g., 25 Nm for copper connectors). Clean insulators with appropriate solvents to maintain creepage distance.
4. Environmental Protection: For direct-buried cables, monitor soil conditions and acidity (pH should be 6-8) to prevent corrosion. Ensure adequate drainage to avoid water logging. For aerial cables, check support structures and clear vegetation within safe distances.
5. Documentation and Monitoring: Maintain records of load cycles, fault events, and test results. Implement distributed temperature sensing (DTS) systems for real-time thermal monitoring, especially in critical routes. Use fiber optics integrated into cables for dynamic rating and fault location.
6. Cleaning and Storage: Store spare cable on reels with protective covers, avoiding sharp bends (minimum bend radius ≥15 times cable diameter). Clean surfaces with isopropyl alcohol before making joints to ensure dielectric purity.
